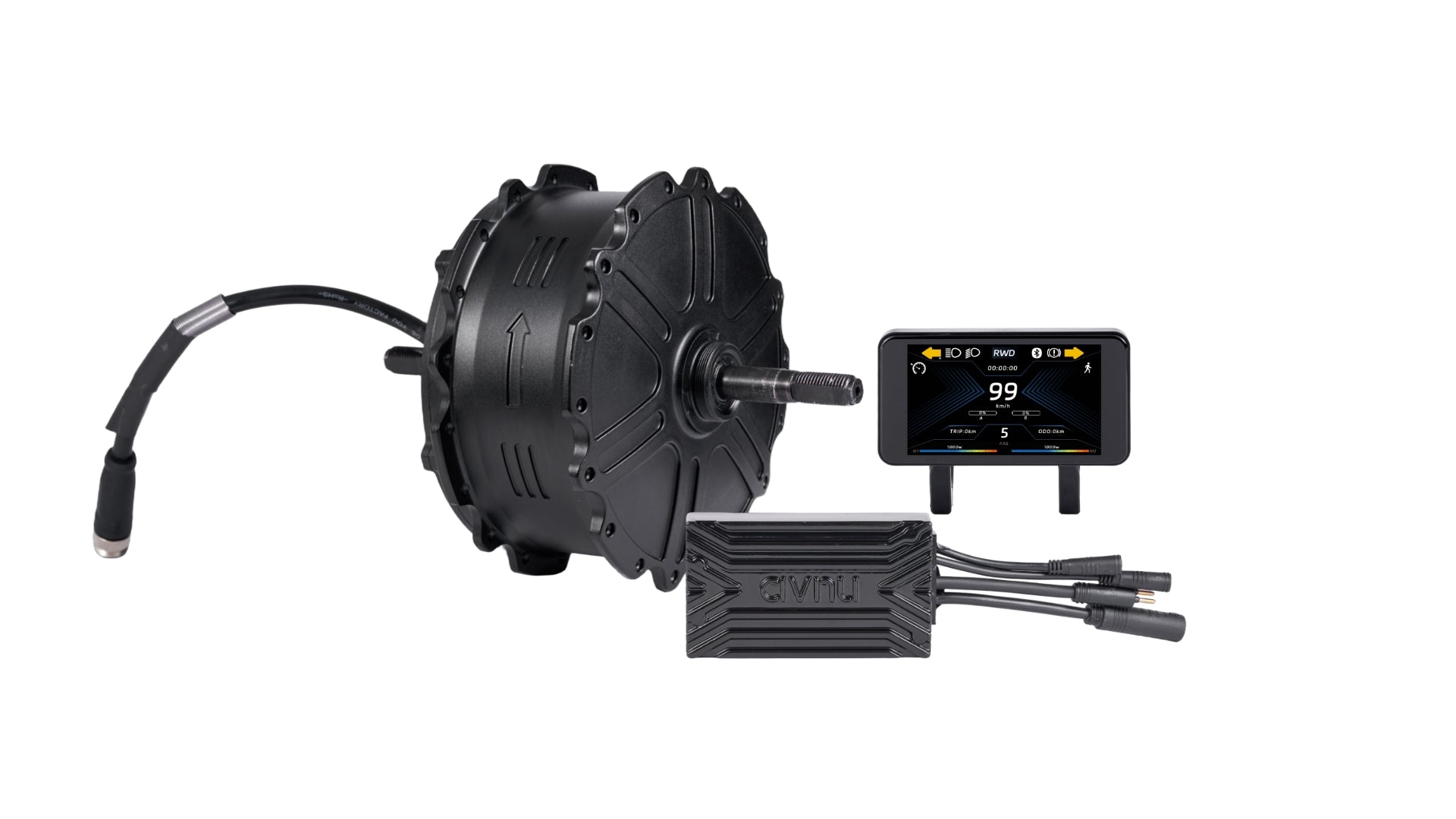

BK1510 Off-Road Power Kit
BK1510 Off-Road Power Kit
-
Free U.S. Shipping
To the lower 48 states
-
xx-year Warranty
For key components
-
Compatibility Review
Check before you buy
-
Professional Service
Local expert support
* Off-road use only — not street legal
Installation
Installation
DIY Installation: Watch our video guide below.
In-Store Service (LA): Book an installation appointment.
Included Accessories
Included Accessories
Throttle: Twist throttle / Thumb throttle
Sensor: Included
Extension wiring harness: Included
Legal & Use Notice
Legal & Use Notice
- Not a street-compliant e-bike product. For off-road, closed-course, or private-property use only.
- Customers are responsible for checking and following local laws.
- By purchasing this product, you acknowledge and agree to our Terms of Service, Warranty & Tuning Disclaimer, and Liability Waiver.
Compatibility Check
Select a numbered point on the bike to check compatibility requirements and details.
Maximum Support for Demanding Rides
The 1500w rear motor wheel is built for riders who want the strongest upgrade option. The prebuilt motor wheel design makes installation more convenient, while the higher power output provides stronger acceleration and better support for demanding rides, heavier loads, and tougher routes.
*For off-road or private-property use only. Not intended for street-legal e-bike operation where local regulations limit motor output.
Smart Control at a Glance
View speed, battery, mileage, and system alerts in real time. With Bluetooth controls, the display keeps your ride clear, connected, and simple to manage.
TC635 - Essential Ride Display
Core riding data and simple controls for everyday use.
TC640 - Upgraded Smart Display
Stronger compatibility for future smart features.
Matched for Stronger Control
As the control core of the system, this 12-MOSFET controller is matched with the 1500W motor to support stronger response, steadier acceleration, and more reliable control for off-road riding.
With wider voltage compatibility and low-voltage protection, it helps the whole system work together safely and efficiently.
REAL UPGRADE SHOWCASE
Throttle
Choose between twist and thumb throttle styles for smooth power control and easy assist-level adjustment.
Smart Display
TC635 - Smooth controls for everyday use.
TC640 - Stronger compatibility for future smart features.
Motor R1510
The 1500w motor comes pre-installed on the wheel and tire, so it's ready to install right out of the box.
Controller CC05
A 12-MOSFET design delivers wider voltage compatibility and built-in low-voltage protection.
Sensor
The cadence sensor detects your pedaling and helps the system provide smoother, more responsive assist while riding.
MODEL
R1510 Rear Hub Motor
MOTOR POSITION
Rear Motor
APPLICATION
Cargo / Off-Road
RATED POWER
1500W
NOMINAL VOLTAGE
48V

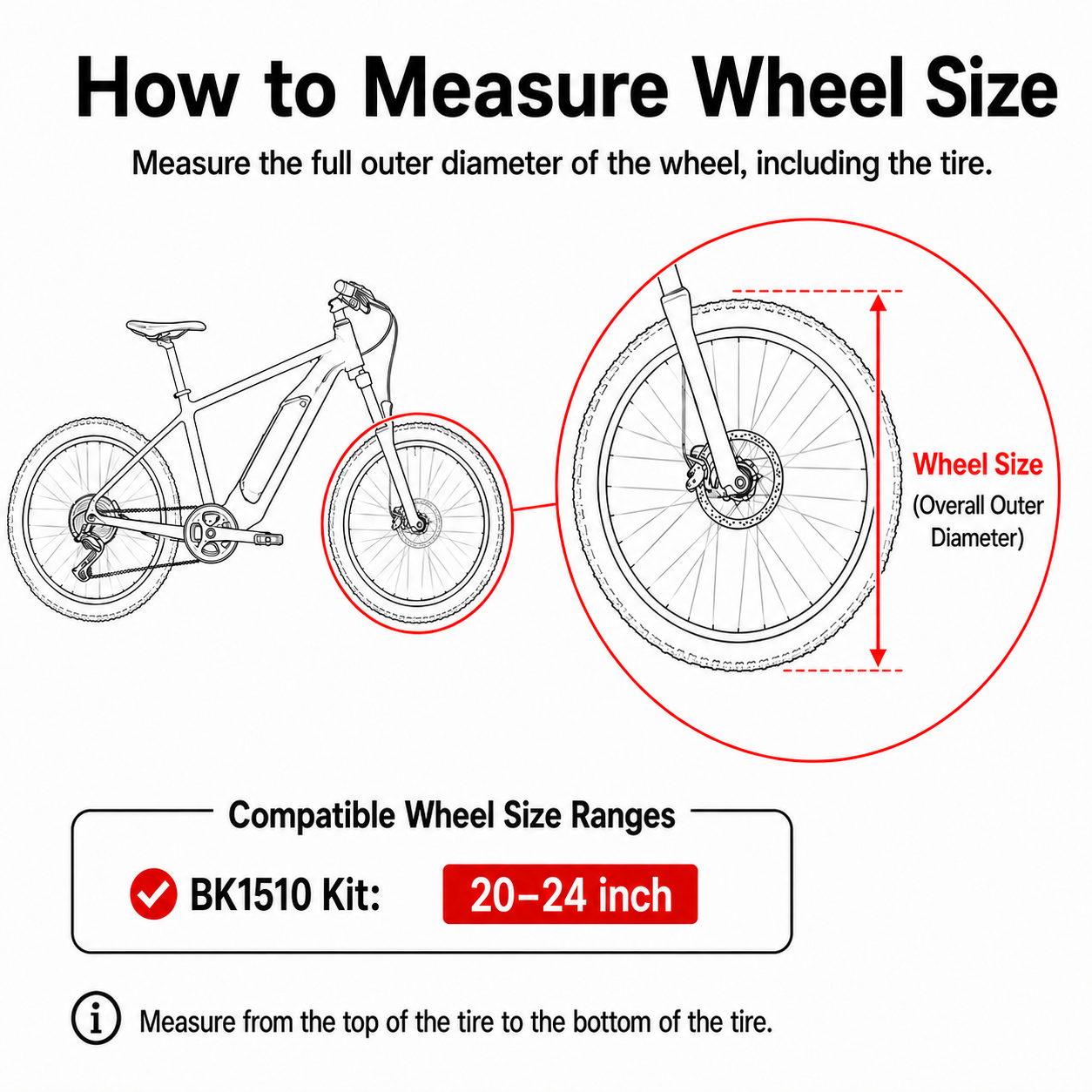

WHEEL SIZE
20–24 Inch

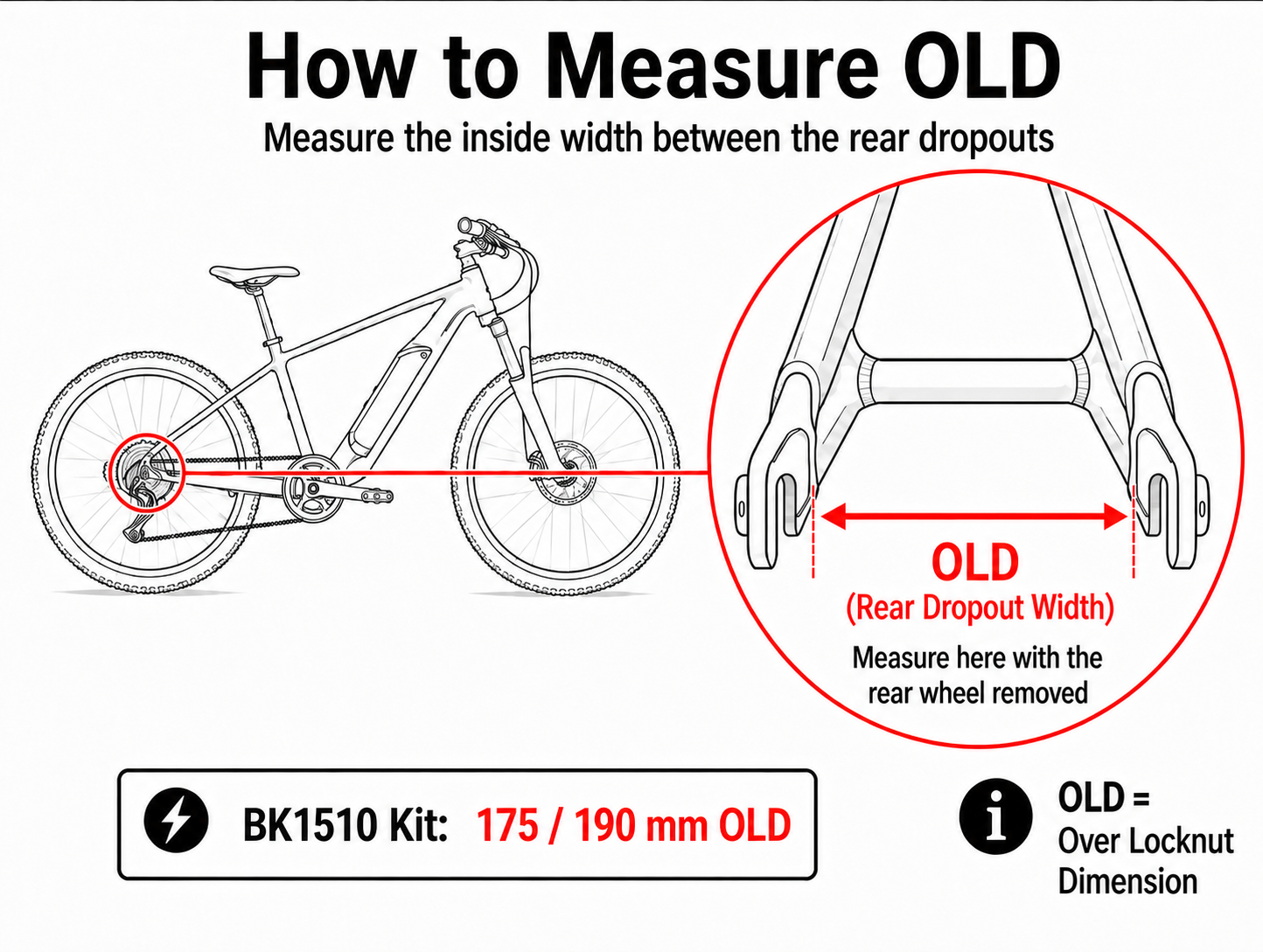

MOUNTING SIZE
175 / 190mm OLD
AXLE SIZE
15.5 mm
BRAKE
Disc Brake / V-Brake
CABLING ROUTE
Left-Side Shaft Routing
SPOKE SPECIFICATION
36H × 12G
COLOR
Silver / Black
WEIGHT
6.7kg
PROTECTION
IP56
CERTIFICATIONS
RoHS / CE
MODEL OPTIONS
TC635 / TC640
SCREEN SIZE
4.0-inch LCD Display
CONNECTIVITY
Bluetooth / NFC
NOMINAL VOLTAGE
24V / 36V / 48V / 52V
GEAR LEVELS
5
COMMUNICATION
UART / CAN
CORE FUNCTIONS
Power On/Off, Light Control, Walk Assistance, USB Charge, Settings
RIDE DATA
Speed, Trip Distance, Battery Capacity, Power Status, Error Code
LANGUAGE
English
MODEL
CC05 12-MOSFET Controller
RATED POWER
3000W
NOMINAL VOLTAGE
24V / 36V / 48V / 60V
CURRENT LIMIT
60A
LOW-VOLTAGE PROTECTION
Yes
COMMUNICATION
UART / CAN
MATCHED COMPONENTS
Motor, Display, Throttle, E-Brake, Light Module
CORE FUNCTIONS
HMI, Twist-Grip Throttle, E-Brake, Light Control
PROTECTION
IP65/66
OVERALL SIZE
114.1 × 64.5 × 32.8mm
Your DIY Installation Guide
Want Expert Help?
Simple Service Process
-
You Book
Easily book online or call us at xxxxx
-
We Service
We handle installations, repairs, maintenance, and safety checks.
-
You Ride
Pick up your e-bike and ride with more confidence.
Meet Us in Person
Visit our local e-bike service store for upgrades, repairs, maintenance, and hands-on support from professional technicians.
-
Location
West Covina, CA
1773 W San Bernardino Rd
STE E70 -
Complete Service
Repairs, maintenance,
upgrade installation,
tune-ups, and checks
- all in one place -
Expert Support
Bring your e-bike in, talk to our local expert team, and get clear advice before any work starts
-
Opening Times
Mon–Fri: 8 AM–8 PM
Sat: 9 AM–6 PM
Sun: Online booking available
FAQs
The BK1510 is designed to upgrade a compatible e-bike that already has an electric drive system. It is not intended to convert a non-electric bicycle into an e-bike.
Compatibility requires more than a matching wheel size. Picarlo must consider the rear dropout, frame and fork condition, brakes, battery, connectors, controller requirements, and intended use. Submit your bike details and photos before ordering.
The BK1510 is supplied as a matched system with the motor wheel assembly and tire pre-fitted, controller, your selected 635 or 640 display, throttle, sensor, and matching extension cable. Refer to the product configuration shown at checkout for the final contents.
The 1500W BK1510 is the highest-power option, intended for demanding off-road performance, stronger torque, and climbing on a suitable e-bike. It may not qualify as a street-legal e-bike in many locations; the rider is responsible for lawful use.
Professional installation is strongly recommended. A 1500W system places greater demands on the frame, wheel mounting, brakes, battery, wiring, and overall bike condition, so the complete setup should be inspected and tested before riding.
Only if it falls within the stated 24V-60V system range and meets the exact controller voltage, current-output, connector, and condition requirements. Do not assume that a battery is suitable based on voltage alone.
Choose the 635 if you prefer a simpler, more streamlined interface. Choose the 640 if you prefer a more detailed information layout. Both options must match the selected Picarlo controller and kit configuration.
No. Picarlo kits are sold as complete, pre-matched systems rather than as separately purchased retail components. If a component needs service after purchase, contact support for diagnosis and the available warranty or repair options.
