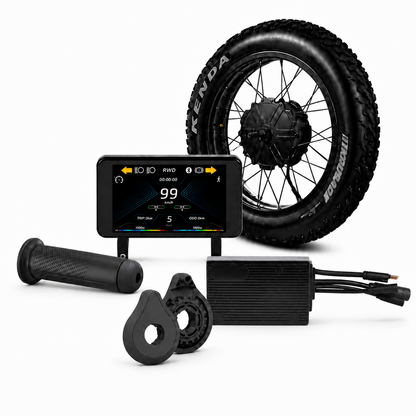

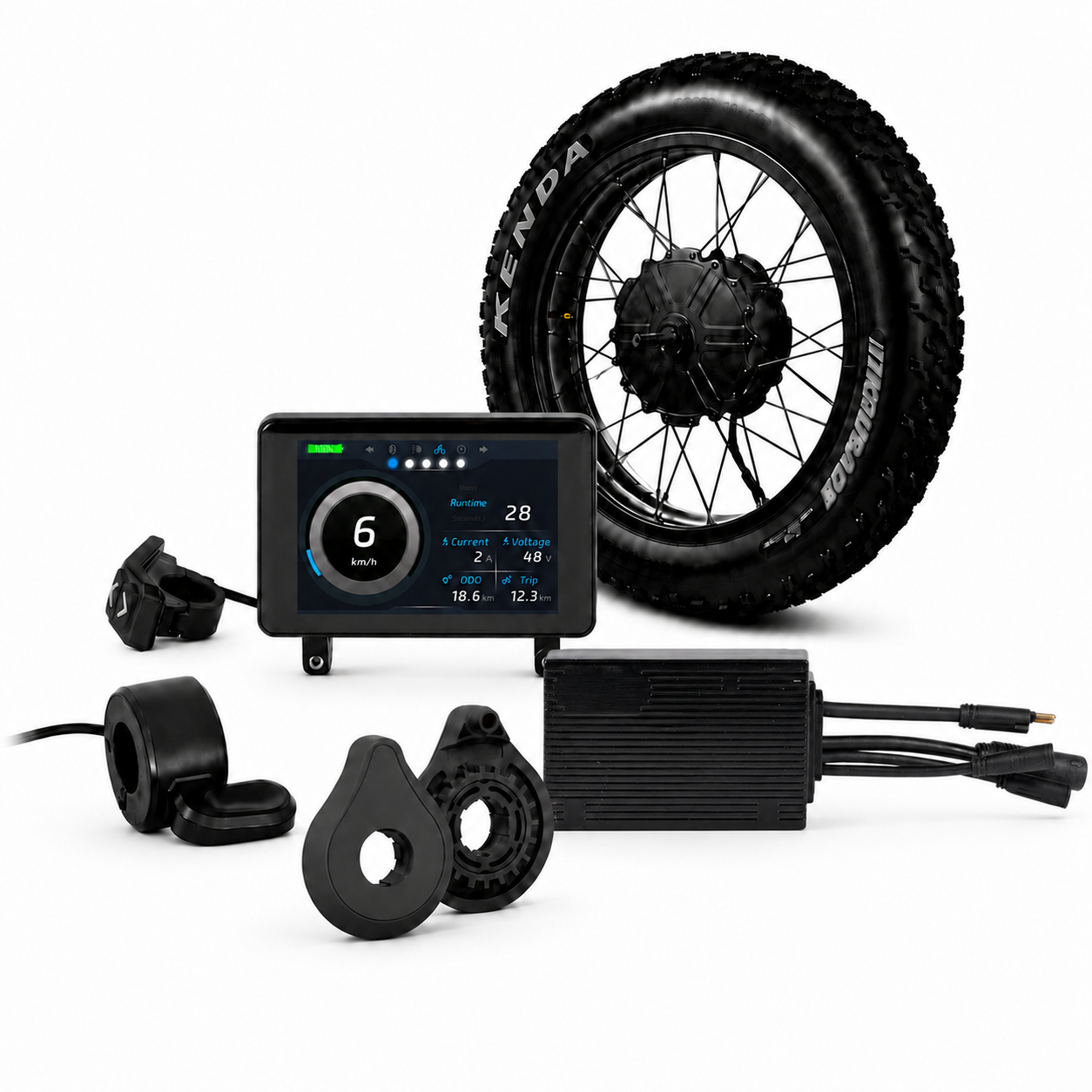

BK750 Urban Upgrade Kit
BK750 Urban Upgrade Kit
-
Free U.S. Shipping
To the lower 48 states
-
xx-year Warranty
For key components
-
Compatibility Review
Check before you buy
-
Professional Service
Local expert support
Installation
Installation
DIY Installation: Watch our video guide below.
In-Store Service (LA): Book an installation appointment.
Included Accessories
Included Accessories
Throttle: Twist throttle / Thumb throttle
Sensor: Included
Extension wiring harness: Included
By purchasing this product, you acknowledge and agree to our Terms of Service, Warranty & Tuning Disclaimer, and Liability Waiver.
View full details
Compatibility Check
Select a numbered point on the bike to check compatibility requirements and details.
A Stronger Ride, Made Easier
The 750W rear motor wheel comes prebuilt with the hub motor installed, making your upgrade easier than installing a bare motor.
It is ideal for daily commuting, casual riding, and riders who want smoother starts with reliable everyday power.
Smart Control at a Glance
View speed, battery, mileage, and system alerts in real time. With Bluetooth controls, the display keeps your ride clear, connected, and simple to manage.
TC635 - Essential Ride Display
Core riding data and simple controls for everyday use.
TC640 - Upgraded Smart Display
Stronger compatibility for future smart features.
Matched for Better Control
As the “brain” of the system, this 6-MOSFET controller is matched with the 750W motor to deliver smoother response, steadier acceleration, and more reliable ride control.
With wide voltage compatibility, it helps the whole system work together safely and efficiently.
REAL UPGRADE SHOWCASE
Throttle
Choose between twist and thumb throttle styles for smooth power control and easy assist-level adjustment.
Smart Display
TC635 - Smooth controls for everyday use.
TC640 - Stronger compatibility for future smart features.

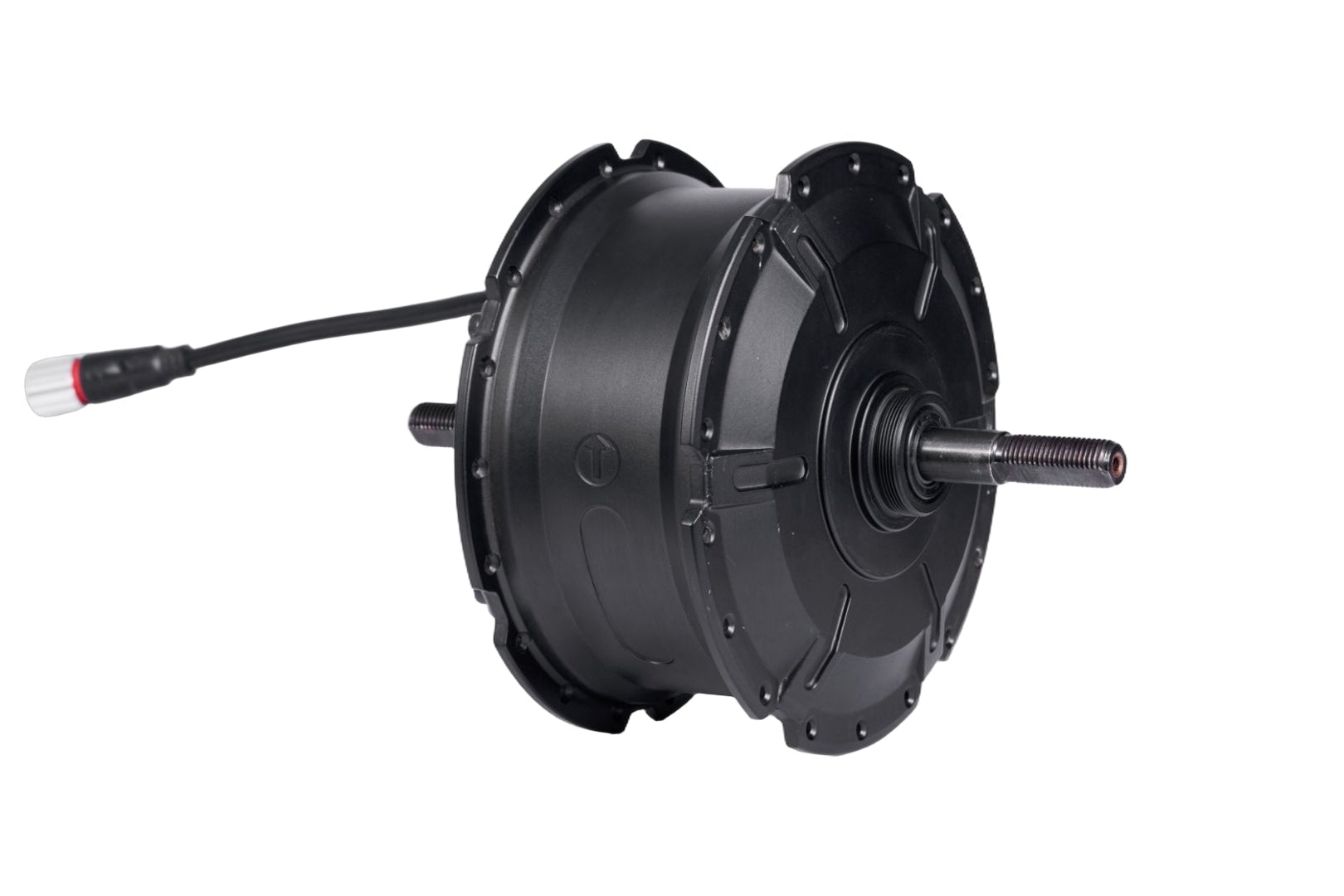

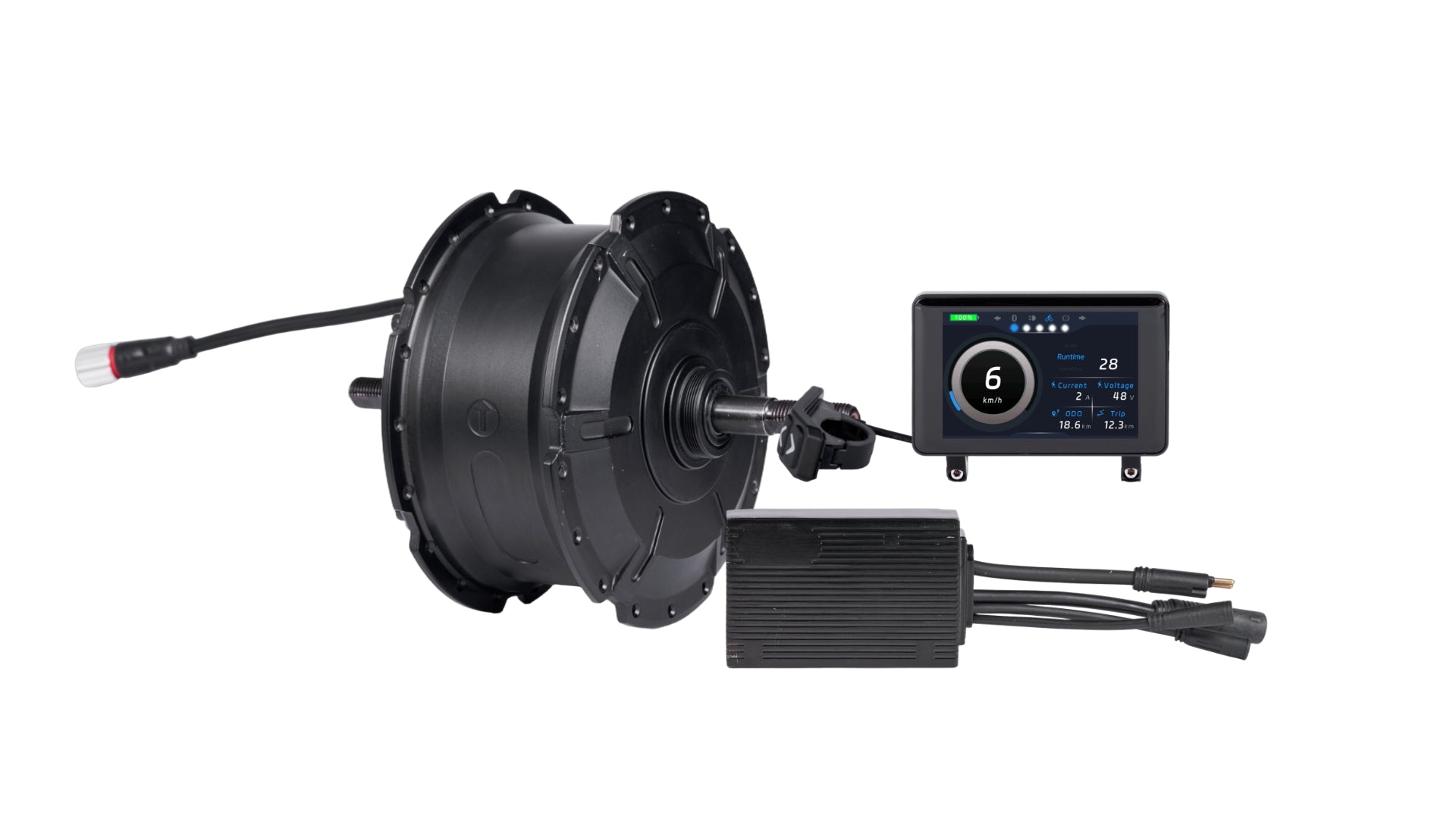

Motor R750

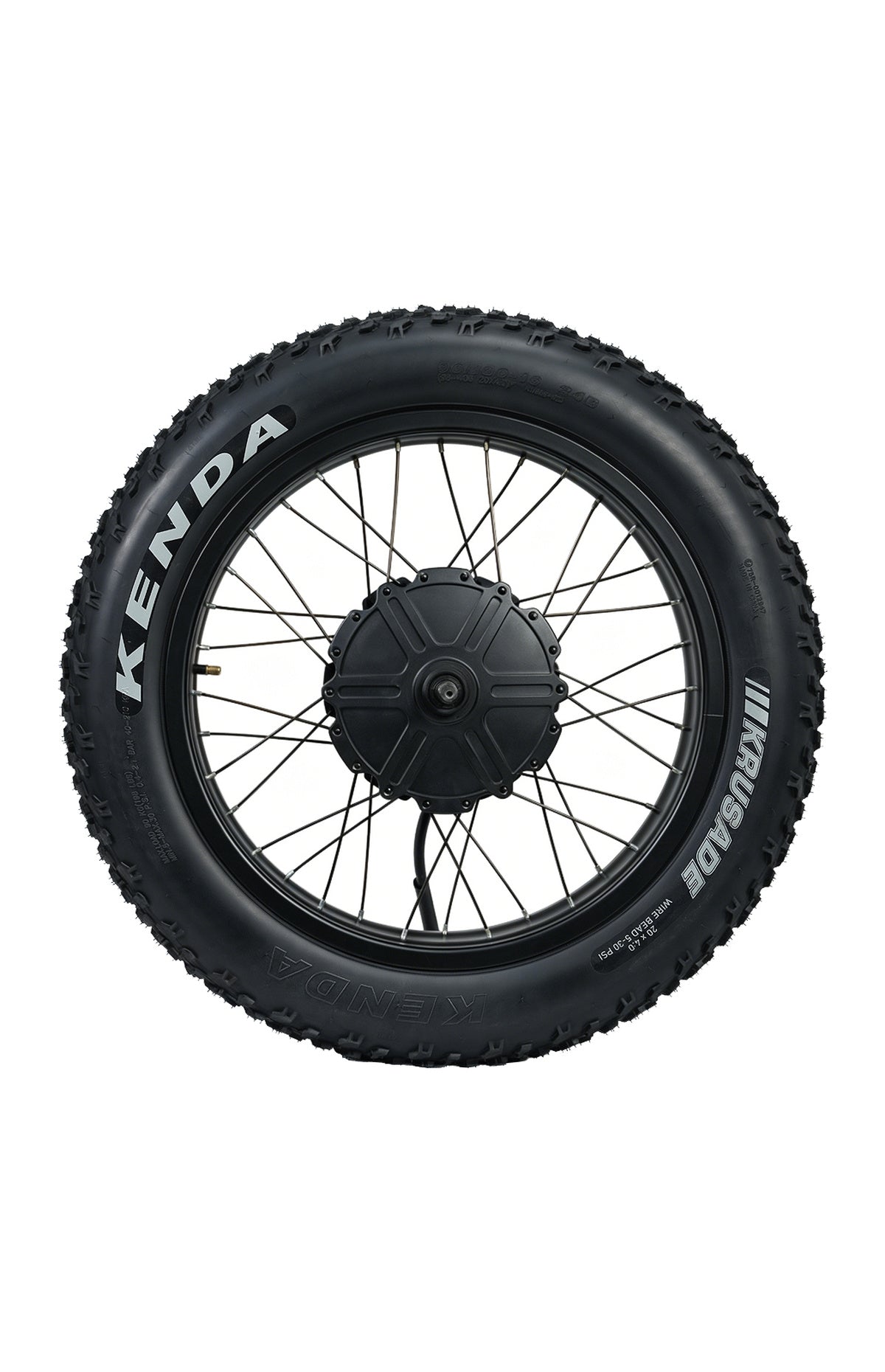

The 750w motor comes pre-installed on the wheel and tire, so it's ready to install right out of the box.

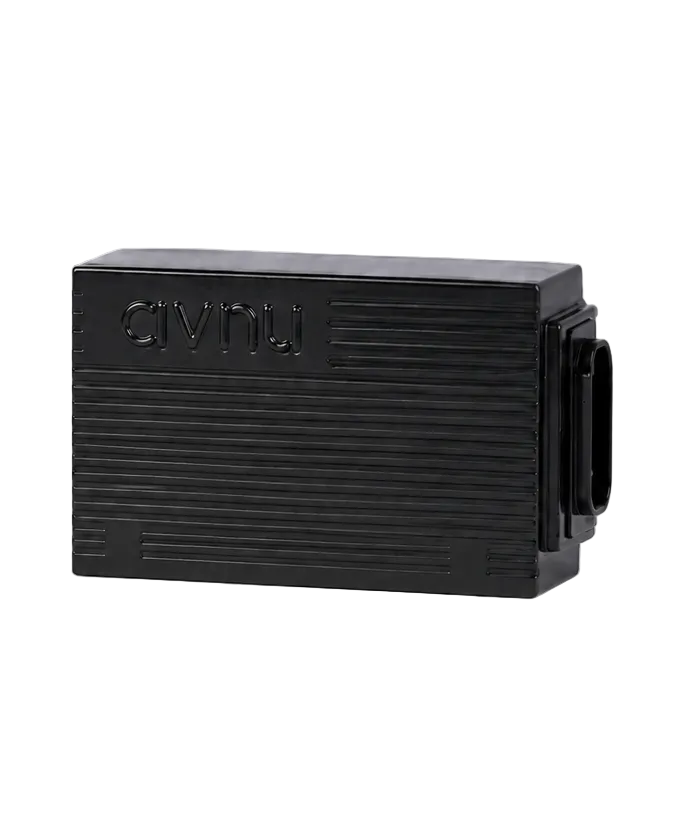

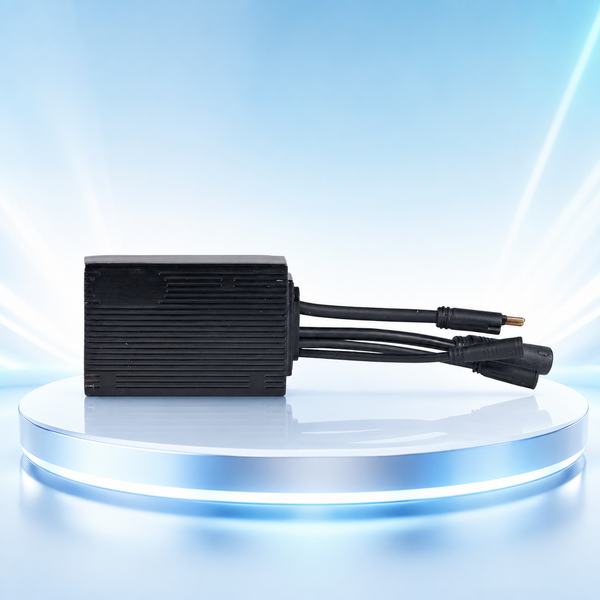

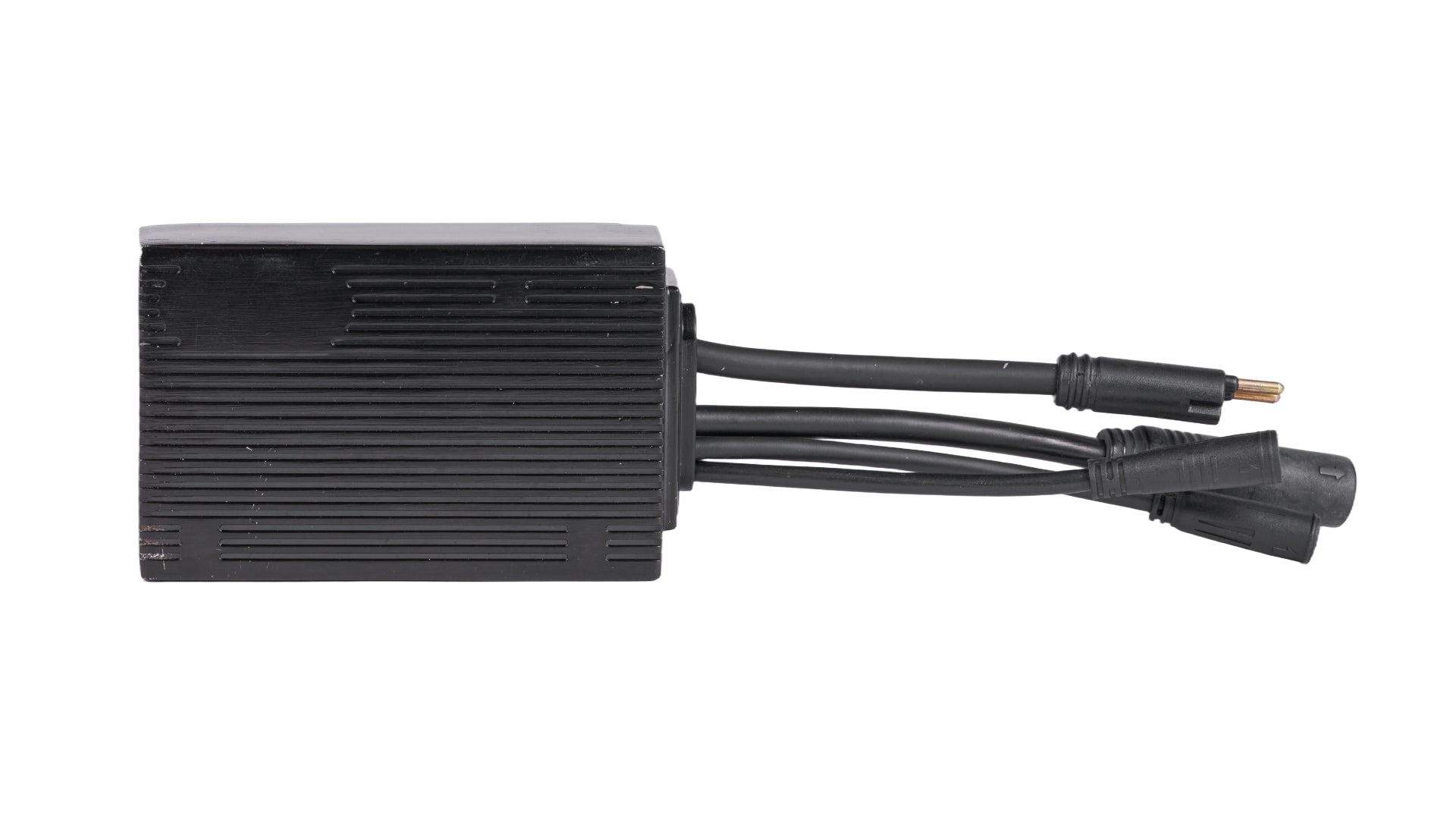

Controller CC06
A 6-MOSFET design delivers efficient power output with built-in low-voltage protection.
Sensor
The cadence sensor detects your pedaling and helps the system provide smoother, more responsive assist while riding.
MODEL
R750 Rear Hub Motor
MOTOR POSITION
Rear Motor
APPLICATION
MTB, Cargo, Off-Road
RATED POWER
750W
NOMINAL VOLTAGE
48V

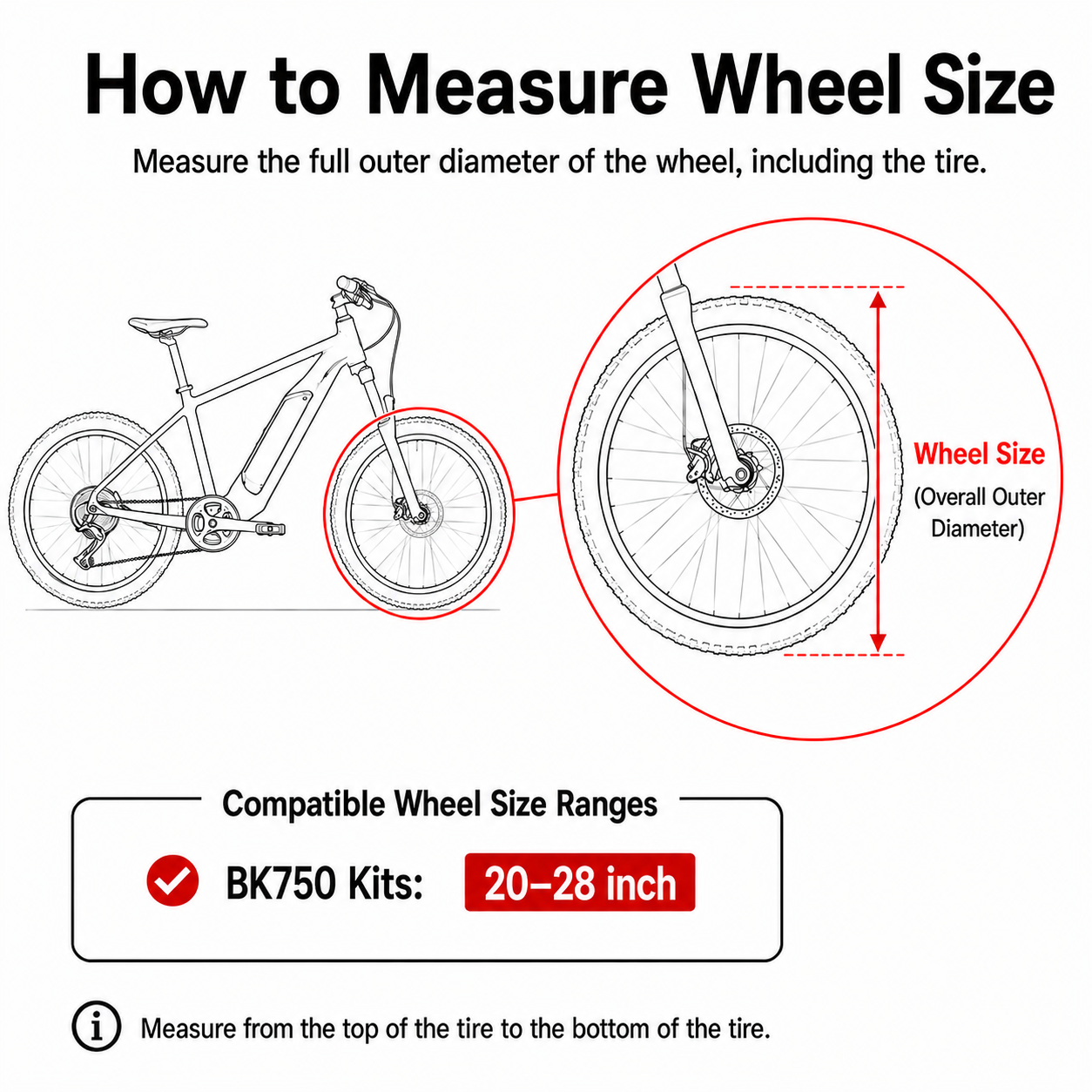

WHEEL SIZE
20–28 Inch

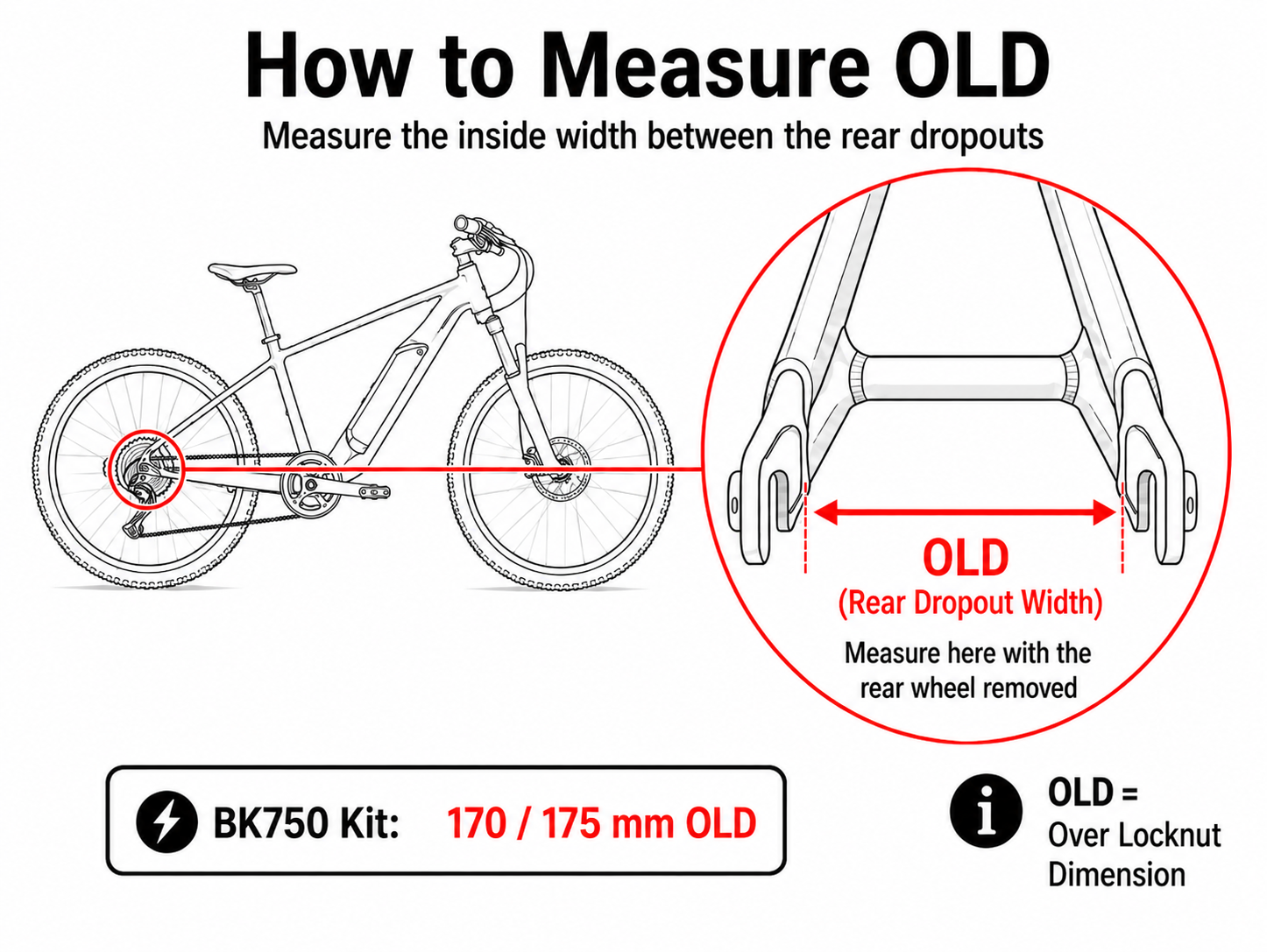

MOUNTING SIZE
170/175 mm OLD
AXLE SIZE
15.5 mm
BRAKE
Disc Brake / V-Brake
CABLING ROUTE
Left-Side Shaft Routing
SPOKE SPECIFICATION
36H × 12G
COLOR
Silver / Black
WEIGHT
4.2 kg
PROTECTION
IP56
CERTIFICATIONS
RoHS / CE
MODEL OPTIONS
TC635 / TC640
SCREEN SIZE
4.0-inch LCD Display
CONNECTIVITY
Bluetooth / NFC
NOMINAL VOLTAGE
24V / 36V / 48V / 52V
GEAR LEVELS
5
COMMUNICATION
UART / CAN
CORE FUNCTIONS
Power On/Off, Light Control, Walk Assistance, USB Charge, Settings
RIDE DATA
Speed, Trip Distance, Battery Capacity, Power Status, Error Code
LANGUAGE
English
MODEL
CC06 High-Performance 6-MOSFET Controller
RATED POWER
1000W
NOMINAL VOLTAGE
36V / 48V / 60V
LOW-VOLTAGE PROTECTION
Yes
COMMUNICATION
UART / CAN
MATCHED COMPONENTS
Motor, Display, Throttle, E-Brake, Light Module
CORE FUNCTIONS
HMI, Twist-Grip Throttle, E-Brake, Light Control
PROTECTION
IP65/66
OVERALL SIZE
99.5 × 56.3 × 35.5 mm
Your DIY Installation Guide
Need Professional Help?
Simple Service Process
-
You Book
Schedule online or give us a call at xxxxxxx
-
We Service
We handle installations, repairs, maintenance, and safety checks.
-
You Ride
Pick up your bike and hit the road with more power and confidence.
Meet Us in Person
Visit our local e-bike service store for upgrades, repairs, maintenance, and hands-on support from professional technicians.
-
Location
West Covina, CA
1773 W San Bernardino Rd
STE E70 -
Complete Service
Repairs, maintenance,
upgrade installation,
tune-ups, and checks
- all in one place -
Expert Support
Bring your e-bike in, talk to our local expert team, and get clear advice before any work starts
-
Opening Times
Mon–Fri: 8 AM–8 PM
Sat: 9 AM–6 PM
Sun: Online booking available
FAQs
The BK750 is designed to upgrade a compatible e-bike that already has an electric drive system. It is not intended to convert a non-electric bicycle into an e-bike.
Compatibility depends on your wheel setup, rear dropout width, brake type, handlebar size, battery, connectors, and existing electrical system. Review the Compatibility Guide or send Picarlo your bike model, battery label, and clear photos before ordering.

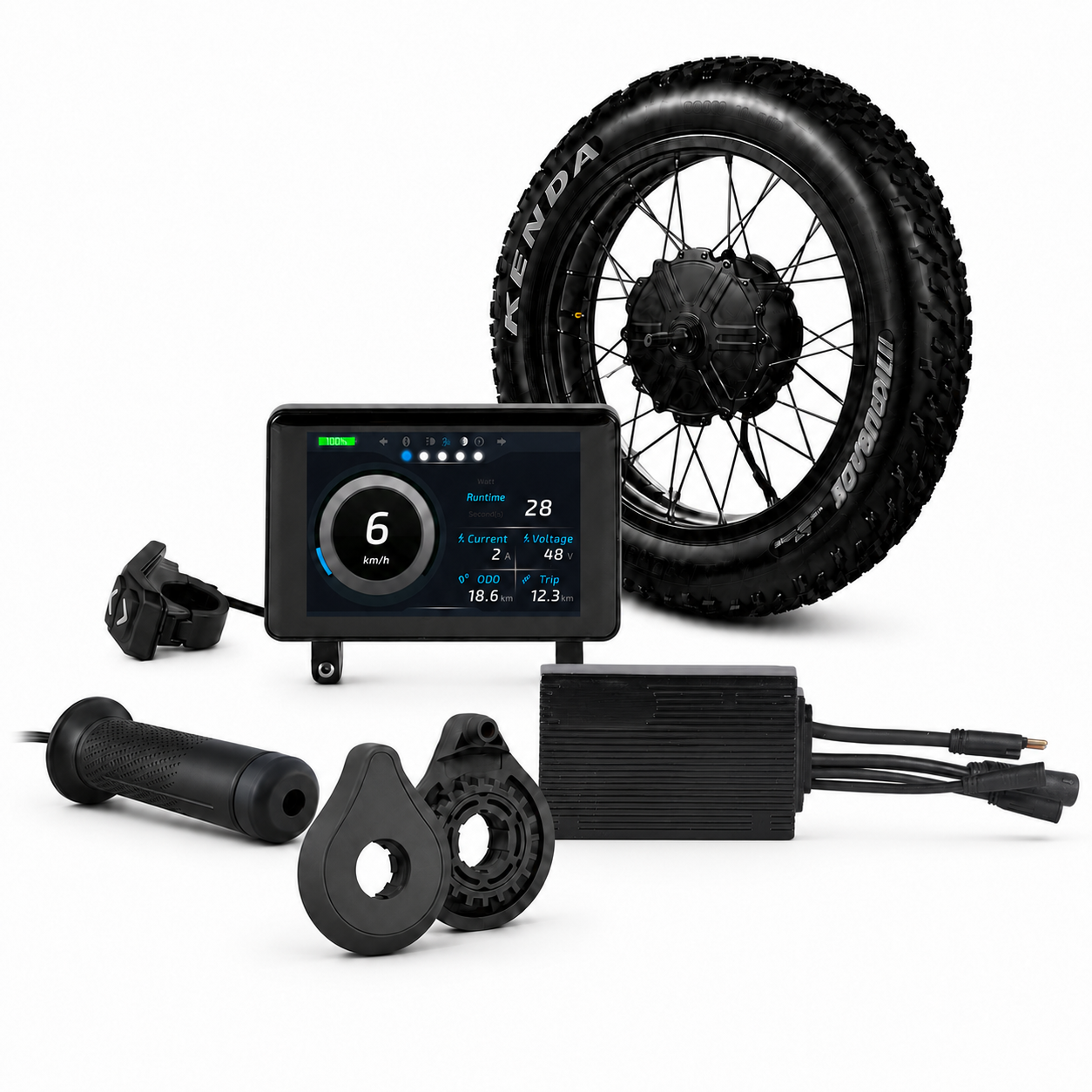

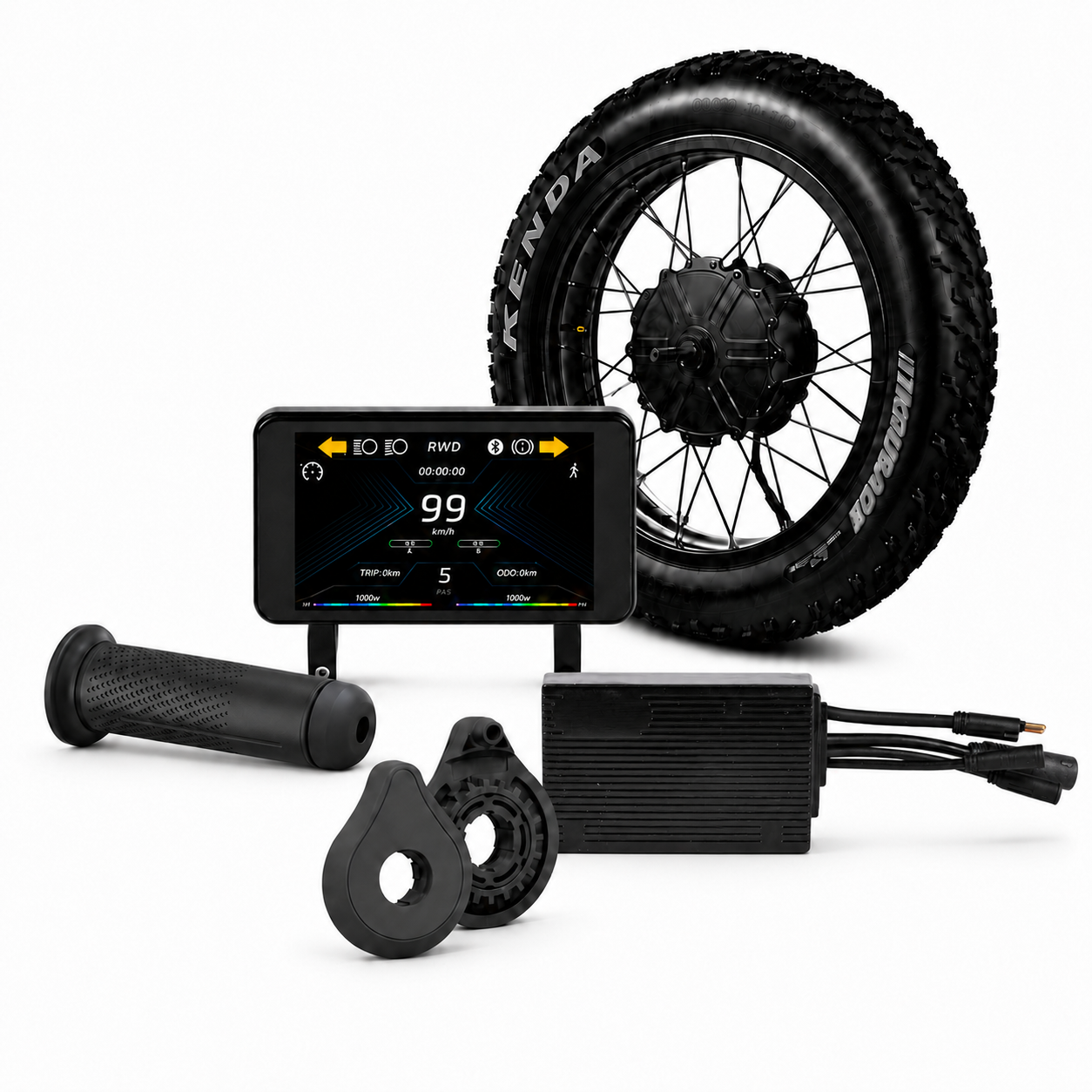

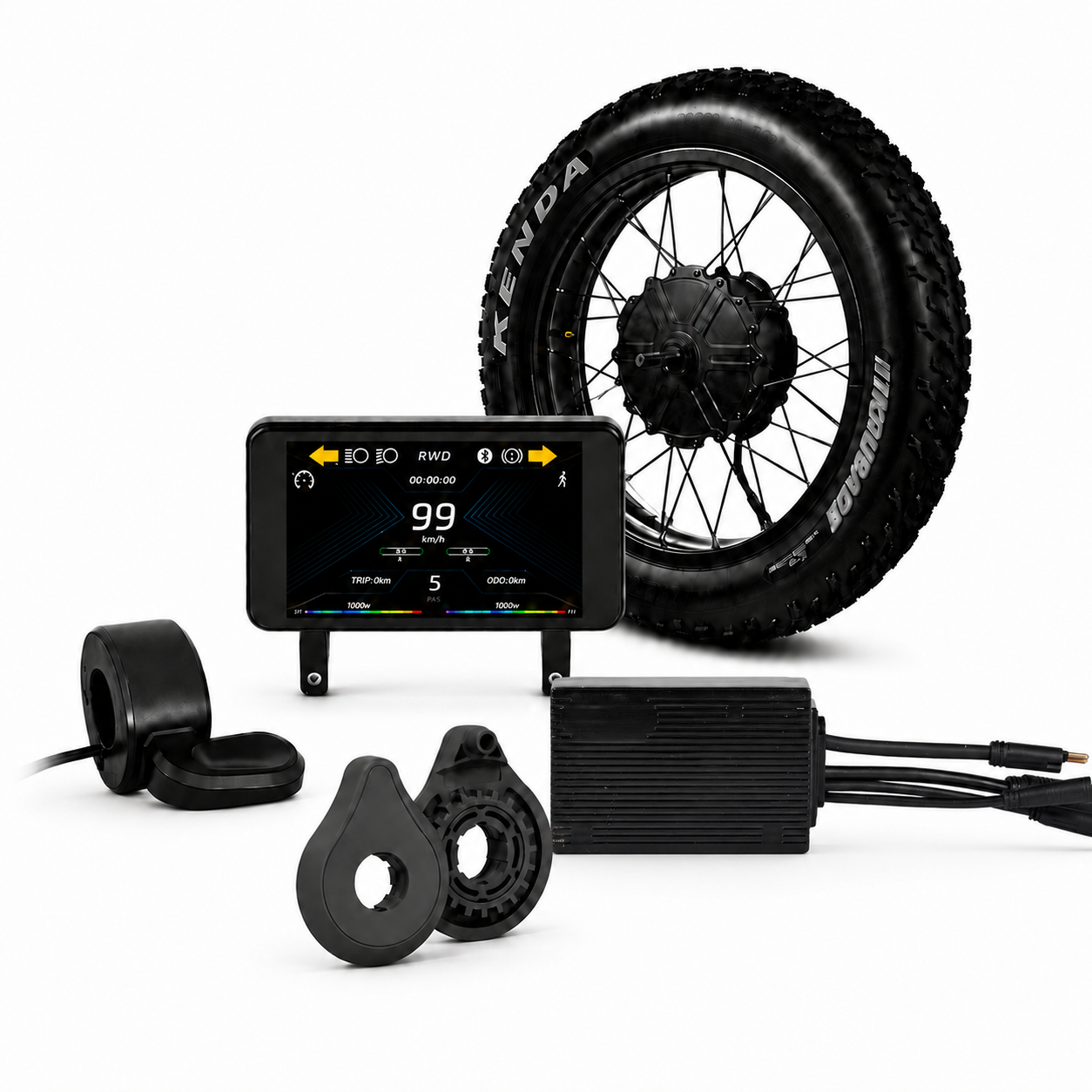

The BK750 is supplied as a matched system with the motor wheel assembly and tire pre-fitted, controller, your selected 635 or 640 display, throttle, sensor, and matching extension cable. Refer to the product configuration shown at checkout for the final contents.
The 750W BK750 is the most urban-oriented option, suited to smoother daily riding and commuting on a compatible e-bike. Final performance and legal use depend on the complete bike configuration and the rules where you ride.
Professional installation is recommended if you are not experienced with motor wheels, brakes, e-bike wiring, or electrical troubleshooting. Picarlo also offers installation support at its West Covina location for compatible projects.
Possibly. The battery must fall within the stated 36V-60V system range and match the selected controller's voltage, current output, connector, and condition requirements. Do not connect a battery until compatibility has been confirmed.
Choose the 635 if you prefer a simpler, more streamlined interface. Choose the 640 if you prefer a more detailed information layout. Both options must match the selected Picarlo controller and kit configuration.
No. Picarlo kits are sold as complete, pre-matched systems rather than as separately purchased retail components. If a component needs service after purchase, contact support for diagnosis and the available warranty or repair options.
